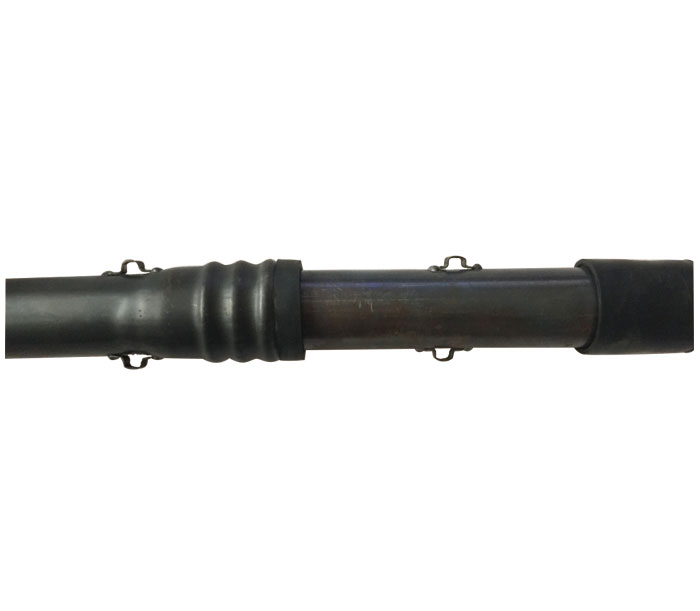

SONIC PIPE WITH GROOVE
  • NAME: SONIC PIPE WITH GROOVE
  • SIZE: 50mm-75mm

Specifications Model OD(mm) Thickness(mm) Tensile Elongation Pressure External pressure Pile Depth(m)
K-HS 50*1 50±1% 1±5% ≥315Mpa ≥14% ≥1Mpa ≥4Mpa 50
K-HS 50*1.2 50±1% 1.2±5% ≥315Mpa ≥14% ≥1Mpa ≥4Mpa 50-70
K-HS 53.5*1.5 53.5±1% 1.5±5% ≥315Mpa ≥14% ≥1Mpa ≥4Mpa 70-90
K-HS 75*1.2 75±1% 1.2±5% ≥315Mpa ≥14% ≥1Mpa ≥4Mpa 90-120
