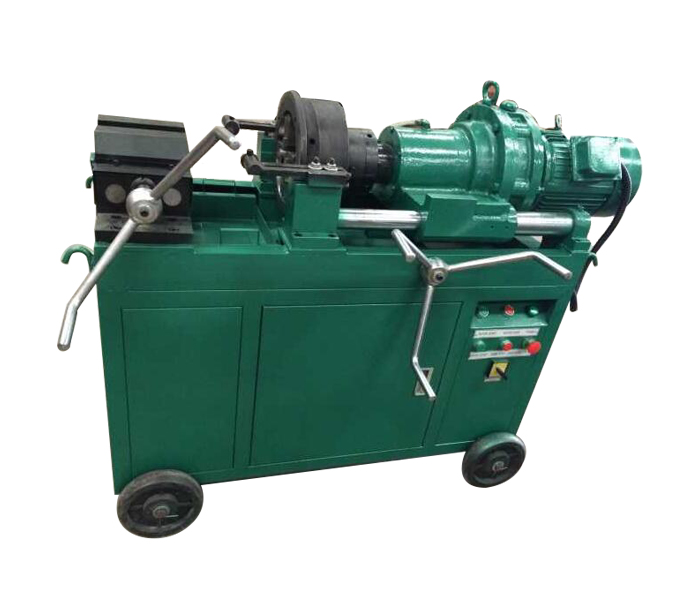

Taper& Parallel Threading Machine
  • NAME: Taper& Parallel Threading Machine
  • SIZE: a021

Name

 Taper &Parallel Threading machine

Function

 Threading the end of Steel Bar

For Steel Bar

 Φ16mm---Φ40mm

Weight

 450  kg

Dimension of the unit (L×W×H)

 125cm×65cm×110 cm

The power of main motor

 4  kW

Working  voltage

 380V（50Hz, three-phase 4-wire system AC）

Rotate   speed

 50 RPM(Or60 RPM  )

Processing maximum length

 Parallel thread  110 mm
Taper thread   70 mm

Match
chaser

 3°taper chaser P2.0、P2.5、P3.0
parallel  chaser P2.5、P3.0、P3.5、P4.0、P4.5
