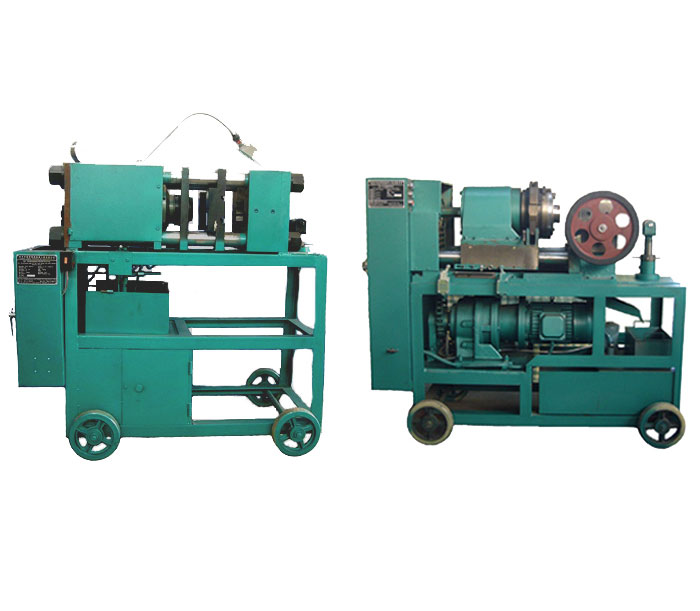

  • NAME: Manual Forging& Threading machine
  • SIZE: a020
  • Price: 0.0USD

Name Manual Threading machine
Function Threading the end of Steel Bar
For Steel Bar Φ12mm---Φ40mm
Weight 600  kg
Dimension of the unit (L×W×H) 133cm×57cm×110 cm
The power of main motor 3KW(Or 4  kW)
Working  voltage 380V or 415V(50Hz, three-phase 4-wire system AC)
Motor Rotate   speed 32 RPM/64RPM
Processing maximum length Parallel thread  150 mm
Matched parallel  chaser P2.0、P2.5、P3.0、P3.5、P4.0、P4.5
